DC24V single chain window opener

Product No.：19519105217
Input：DC24V
Application：motorized window,skylight,sunroom
Online Inquiry

China DC24V single electric chain window opener/DC24V single window actuator motor for skylights

1. DC24V safe voltage,Can be used in conjunction with a mechanical switch, or work together through an intelligent controller.

2.Simple but delicacy design,low noise operation

4. Sandblasted oxidative surface treatment

5. Silver color standard,other colors can be customized

6. Flexible optional installation

7. Electronic overload cut off

8. Endurance tests(30,000 cycles) are carried out

Single chain window opener parameter

Working voltage: DC24V

Max.current: 1.5A

Push/Pull Force: 400N

Stroke:300mm,400mm,500mm，600mm

Speed: 8mm/s

Protection class:IP32

Actuator size:

300mm stroke:51*41*420mm

400mm stroke:51*41*490mm

500mm stroke:51*41*540mm
600mm stroke:51*41*590mm

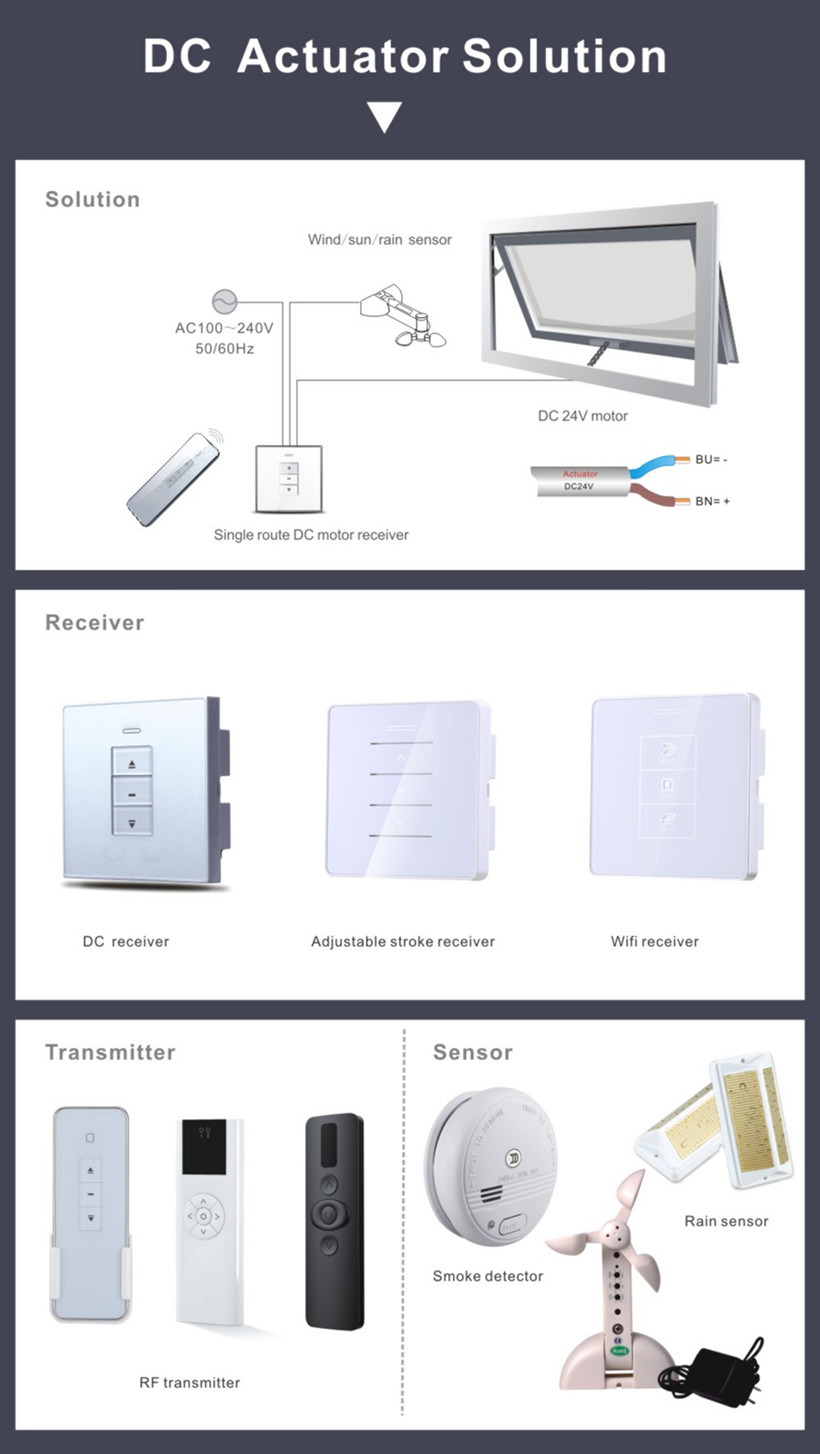

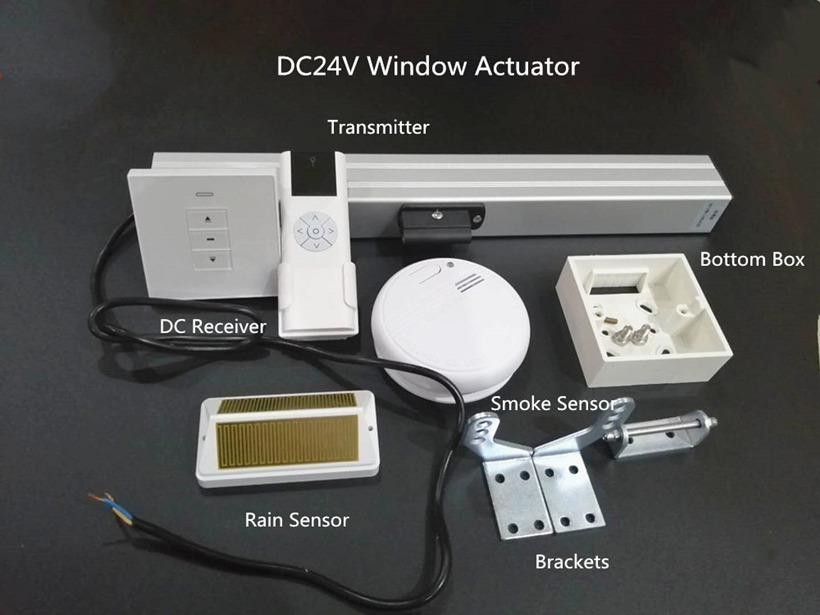

Work with dc motor receiver and remote，The window opener can adjust any stroke within the maximum stroke range through the controller, and can also be remotely controlled by a mobile phone or intelligently.
